GPU Clock:
- Boost Clock (Tweak / Default): Up to 2040 / 2025 MHz
- Game Clock (Tweak / Default): 2000 / 1935 MHz
- Base Clock (Tweak / Default): 1885 / 1810 MHz
- Memory Clock: 14 Gbps
Key Specification:

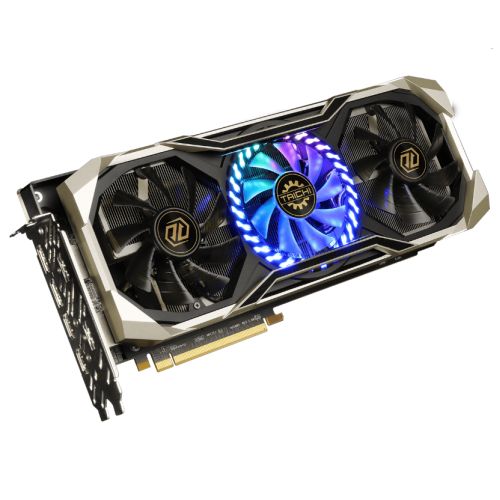

- AMD Radeon RX 5700 XT Graphics
- 2nd Gen 7nm GPU
- 8GB 256-bit GDDR6
- PCI Express 4.0 Support
- 4 x DisplayPort, 2 x HDMI
- 2.5-Slot Design
Key Features:
- Taichi Triple Fans
- 3D Metal Backplate
- 6 Display Outputs
- Dual BIOS
- 0dB Silent Cooling
- 2.5-Slot Design
- Polychrome SYNC
Taichi Triple Fans
The two 90mm and one 80mm fans provide the optimized cooling efficiency for the best balance between performance and silence.
3D Metal Backplate
The metal backplate is solid to avoid PCB bending. The precisely stacking and assembling of embedded gears makes the graphic card more legendary in visual.
6 Display Outputs
Expands and maximizes users' vision through the 6 display outputs.
Reinforced Metal Frame
Enhanced structure and prevent the PCB from being bended.
Polychrome SYNC
With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.
10+1 Phase Power
10+1 phase power design with high quality components delivers a more sufficient power to the GPU for the optimized performance.
Dual BIOS
Make users to easily switch the BIOS settings between the OC and Silent modes.
2.5-Slot Heatsink Design
The 2.5-Slot larger heatsink design enhances the thermal capability to make the graphics card cooler and quieter.
0dB Silent Cooling
Makes the fan stop when the temperature goes low for the complete silence.
Taichi Tweak
Provides the smart fan speed control and instant performance tweaking.
AMD Eyefinity Technology
AMD Eyefinity technology expands the traditional limits of desktop computing by multiplying your screen area. With multiple monitors, games become more immersive, workstations become more useful and you become more productive.
Radeon FreeSync™ 2 HDR
Get ready to experience smooth brilliant HDR gaming. Enjoy vibrant HDR content while eliminating image tears and choppiness for effortlessly smooth gameplay. Low Frame-Rate Compensation, Low Latency, Plug and Play and HDR Ready. That's Radeon FreeSync™ 2 HDR.
8K Resolution Support
Not only can it handles 4K graphics but also supports the next generation 8K video output for the ultimate visual experience.
Intelligent Sharpening Technology
Radeon Image Sharpening combines contrast-adaptive sharpening with GPU upscaling to deliver crisp looking visuals with virtually no performance impact.
Stunning Visual Fidelity
FidelityFX is a collection of high-quality post-process effects that automatically collapse multiple effects into fewer shader passes to reduce overhead and free up your GPU for the visceral experience you demand.
No Stuttering. No Tearing. Just Gaming.
Radeon Freesync* and FreeSync 2 HDR** take full advantage of Radeon RX 5700 XT, bringing gamers the best stutter and tear-free gaming experience with higher refresh rates, lower latency, and 10-bit HDR, available on over 700 monitors.
Radeon Software Adrenalin 2019 Edition
AMD Radeon™ Software Adrenalin 2019 Edition gives you more control over your gaming experiences. The software’s intuitive interface enables players to stream, share and tweak graphics settings in real-time without missing a second of the action or compromising in-game performance.
